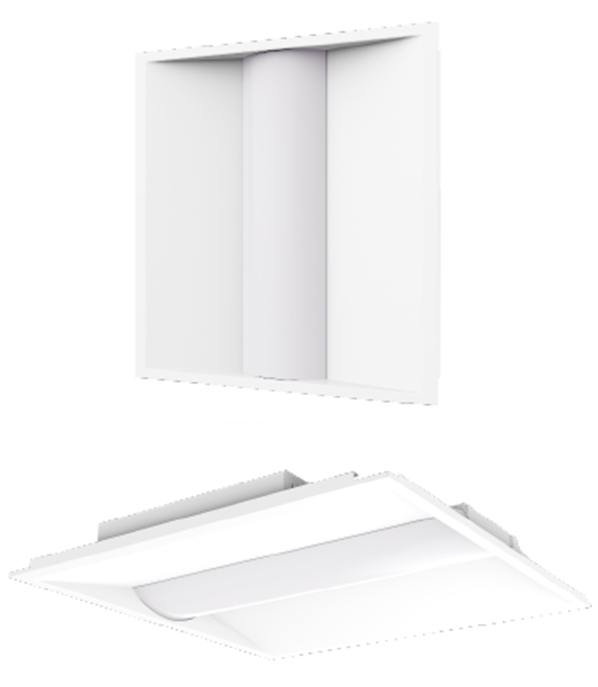

Troffer Lighting by Lumen Efficient Design


LED-TF22-347V-40D & LED-TF24-347V-50D

• Modern centre basket design for excellent lighting distribution and colour consistency

• New lightweight and ultra slim design

• Fits standard ceiling T-Bar/Grid dimensions

• Available in 2x2 and 2x4 dimensions

• CCT Selectable: 3500K, 4000K, 5000K

• 2x2 Output Selectable: 25W, 30W, 40W

• 2x4 Output Selectable: 30W, 40W, 50W

• 110lm/W luminous efficacy

• Features a durable, UV-resistant PC lens

• Unified Glare Rating (UGR) <22

• Seamless aluminum frame featuring double-sided welding technology and SPCC back plate ensures a strong structure and improved heat dissipation

• Oversized integrated junction box for quick and easy installation

• Features premium SMD 2835 LED chips

• L70 rated chip for >50,000hours projected life

• Input voltage 120-347Vac

• 0-10V dimmable driver

• Flicker-free driver as standard

• Damp location rated

• Colour Rendering Index (CRI) 80

• Power factor >0.95

• Voltage frequency 50/60Hz

• Operating temperature -25ºC to 40ºC

• 5-year warranty
