Get Smart EV Chargers
Exclusively available through Lumen Efficient Design, our Get Smart EV chargers are ready to meet your electric vehicle charging requirements.

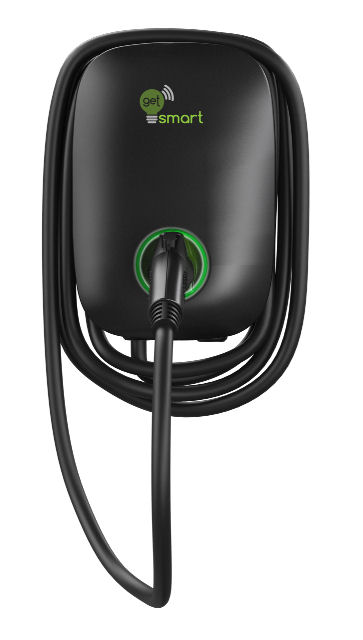

GS12 Series 32A / 80A AC
- Residential and commercial Level 2 AC electric vehicle charger
- Modern, ergonomic, low profile design
- Indoor and outdoor NEMA TYPE 3R rated enclosure
- V0 rated thermoplastic enclosure
- SAEJ1772 (Type 1) charging interface with built in plug receptacle
- LED charge status indicator
- Output current available from 32A to 80A
- Output current programmable from 16A to 48A with GS12-48A model
- Standard LAN wired connection for central management system
- Standard RFID module for user identification and management
- Standard WiFi + Bluetooth and optional 4G wireless connections
- Standard OCPP 1.6 JSON, OCPP 2.0 JSON ready*
- Home EV charging management app available
- Over-the-air firmware updates available
- Standard 18ft cable, optional 25ft cable
- Available ISO15118 Vehicle-to-Grid function*
- Compatible with bespoke pedestals and cable management systems
- 2 Year Warranty

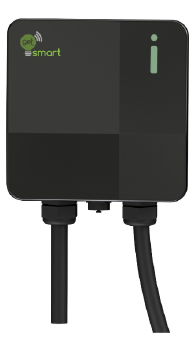

GS27 Series 32A / 48A AC
- Residential Level 2 AC electric vehicle charger
- Modern, ergonomic, low profile design
- Indoor and outdoor NEMA TYPE 3R rated enclosure
- V0 rated thermoplastic enclosure
- SAEJ1772 (Type 1) charging interface
- LED charge status indicator
- Output current available from 32A to 48A
- Output current programmable from 16A to 48A with GS27-48A
- Standard LAN wired connection for central management system
- Optional RFID module for user identification and management
- Optional WiFi + Bluetooth
- Optional OCPP 1.6 JSON
- Home EV charging management app available for models with wireless connectivity
- Over-the-air firmware updates available for models with wireless connectivity
- Standard 18ft cable, optional 25ft cable
- Compatible with bespoke pedestals and cable management systems
- 2 Year Warranty

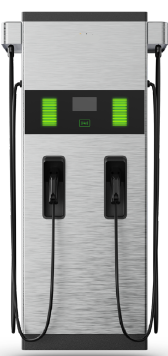

GSD100 Series 50kW/150kW DC Fast Electric Vehicle Charger
- Commercial Level 3 DC electric vehicle charger
- Simultaneous dual charging; supports smart charging and load balancing
- System available in 50kW and 150kW capacities
- Indoor and outdoor NEMA TYPE 3R rated enclosure
- Integrated cable management system
- Two (2) CCS (Type 1) charging interfaces with built in plug receptacles
- LED charge status indicator
- 7” LCD display user interface
- Standard LAN wired connection for central management system
- Standard RFID reader module for user identification and management
- Standard WiFi + Bluetooth wireless connections
- Optional 4G wireless connection
- Standard OCPP 1.6 JSON
- Modular architecture
- Optional unattended payment self-serve kiosk based on time and/or kWh delivered*
- Over-the-air firmware updates available for models with wireless connectivity
- Standard 18ft cables
- 2 Year Warranty
