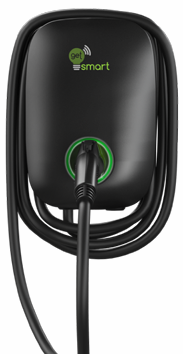

GS12 Series - 48A / 80A AC Electric Vehicle Charger

NOV 2025 · Level 2 AC · Residential & Commercial

Low-profile NEMA 3R charger with SAEJ1772 Type 1 plug, LAN/RFID/WiFi+Bluetooth standard, optional 4G, OCPP 1.6 JSON, and output options up to 80A.

LANRFIDWiFi + BTOCPP 1.6NEMA 3R

Power Specifications

Input Voltage	200-240 Vac / Single Phase
Output Current	48A or 80A
Circuit Breaker	60A (48A model), 100A (80A model)
Dimensions	14.2 x 9.8 x 4.4 in

Download GS12 48A Spec Sheet (NOV25)

GS12 Series - 32A / 80A AC Electric Vehicle Charger

MAY 2024 · Level 2 AC · Residential & Commercial

Full-range GS12 lineup covering 32A to 80A with the same smart stack: LAN, RFID, WiFi + Bluetooth, OCPP 1.6 JSON, optional 4G, and available ISO15118 V2G options.

Model Range

Models	GS12-32A, GS12-40A, GS12-48A, GS12-80A
Output Current	32A / 40A / 48A / 80A
Circuit Breaker	40A / 50A / 60A / 100A
Warranty	2 Year

Download GS12 32A/80A Spec Sheet (MAY24)

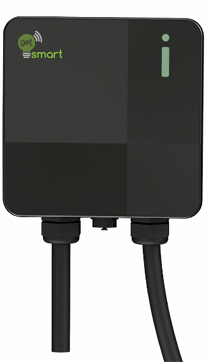

GS27 Series - 32A / 48A AC Electric Vehicle Charger

JAN 2024 · Level 2 AC · Residential

Compact residential form factor with LAN standard and optional RFID, WiFi + Bluetooth, and OCPP 1.6 JSON. Supports 32A, 40A, and 48A models.

Key Specifications

Models	GS27-32A, GS27-40A, GS27-48A
Dimensions	8.6 x 8.6 x 3.7 in
Input Voltage	200-240 Vac / Single Phase
Circuit Breaker	40A / 50A / 60A

Download GS27 Spec Sheet (JAN24)

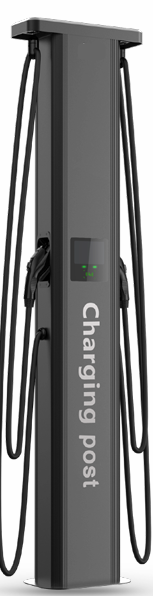

GSP5 Series - 160A AC Electric Vehicle Charging Station

MAY 2024 · Commercial · Dual Charging

Commercial dual-port charging station with simultaneous 80A + 80A output, 7 inch touchscreen, cable management, RFID, LAN, WiFi + Bluetooth, and standard 4G.

Core Specifications

Model	GSP5-160A
Capacity	160A system (80A + 80A)
Interfaces	2 x SAEJ1772 Type 1
Input / Breaker	200-240 Vac, 200A breaker
Warranty	3 Year

Download GSP5 Spec Sheet (MAY24)

Specifications subject to change. Contact us for optional kiosk/payment configurations.
