LEDI Architectural Linear Systems

Round and linear extruded families — selectable CCT and wattage, 0–10V dimming, 120–347 V. See PDF cutsheets for full ordering guides and dimensions.

LEDI (LI-O) — Round Architectural Linear System

JAN 2025 · Pendant / surface architectural ring

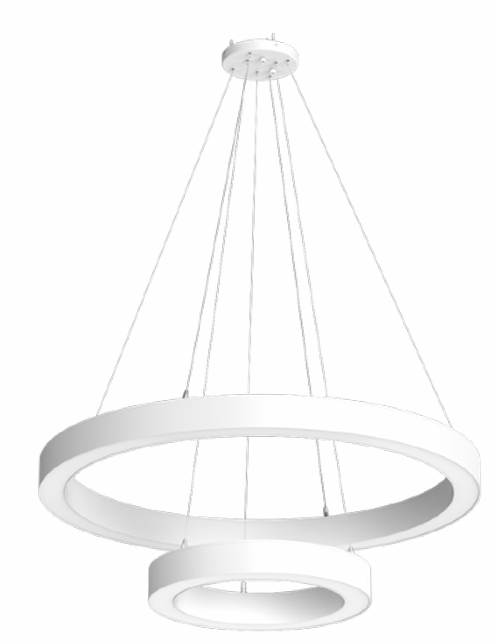

LEDI LI-O round architectural linear pendant

Low-profile, one-piece aluminum ring with micro prismatic diffuser, slightly regressed trim, and low-glare optics (UGR <26). Three suspension kit options support varied ceiling conditions.

24″ · 36″ · 48″ Ø 3000 / 4000 / 5000K 130 lm/W 0–10V dim 120–347 V

Highlights

ConstructionBespoke one-piece aluminum extrusion; micro prismatic lens; direct 110° distribution
Sizes24″, 36″, and 48″ diameters
FinishesWhite RAL9016, black RAL9011, silver RAL9006; optional paint-to-sample
CCT / CRISelectable 3000K–4000K–5000K; CRI Ra80+ (Ra90+ optional)
Selectable power24″: 30 / 40 / 50W · 36″: 45 / 50 / 70W · 48″: 60 / 80 / 100W
Performance (direct)Up to 3,900 / 5,200 / 6,500 lm (24″); 5,850 / 6,500 / 9,100 lm (36″); 7,800 / 10,400 / 13,000 lm (48″) at 130 lm/W
Electrical120–347 VAC, 50/60 Hz; flicker-free; Class II; PF >0.9; THD ≤20%
EnvironmentIP20; dry or damp locations; −20 °C to 40 °C; 10–90% RH
Rated life / warranty≥50,000 h (L80B20 @25 °C); 5-year warranty

Download full spec — LEDI (LI-O) Round Architectural Linear System (JAN25)

LEDI (LI) — Architectural Linear System

SEP 2024 · Continuous linear · DLC Premium

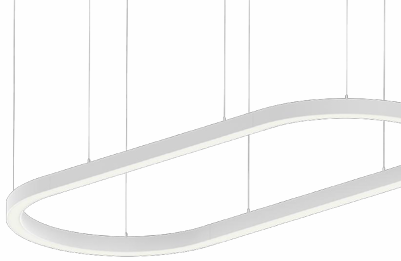

LEDI LI architectural linear extrusion

2″ aluminum extrusion with buckle joint for continuous runs, tool-less end caps, and flexible mounting: suspended, wall, ceiling, or recessed. Optional T, X, L, and V (120°) connectors; rounded corners and semi-circle options per cutsheet.

2′ · 4′ · 8′ + HO Direct / indirect 130 lm/W DLC 0–10V dim 120–347 V

Highlights

OpticsStandard opal diffuser; optional micro prismatic lens or bespoke low-UGR (<19) micro reflector; direct 110° (indirect 110° where indirect module is used)
Direct + indirectOptional 70% direct / 30% indirect (indirect module sold separately)
Lengths / power2′: 10 / 12 / 15W · 4′: 20 / 24 / 30W · 8′: 40 / 48 / 60W · 4′ HO: 30 / 40 / 50W · 8′ HO: 60 / 80 / 100W
Performance (direct 100%)Example max: 2′ 1,950 lm · 4′ 3,900 lm · 8′ 7,800 lm (up to ~975 lm/ft)
CCT / CRISelectable 3000K–4000K–5000K; CRI Ra80+ (Ra90+ optional)
FinishesWhite RAL9016, black RAL9011, silver RAL9006; optional paint-to-sample
Electrical120–347 VAC, 50/60 Hz; flicker-free; Class II; PF >0.9; THD ≤20%
EnvironmentIP20; damp location; −25 °C to 45 °C; 10–90% RH
Rated life / warranty≥50,000 h (L80B20 @25 °C); 5-year warranty
Also availableRound pendants 20″ and 40″ (see cutsheet)

Download full spec — LEDI (LI) Architectural Linear System (SEP24)

Summaries are for quick reference only. Always use the PDF cutsheets for ordering codes, connector details, and current certifications.
